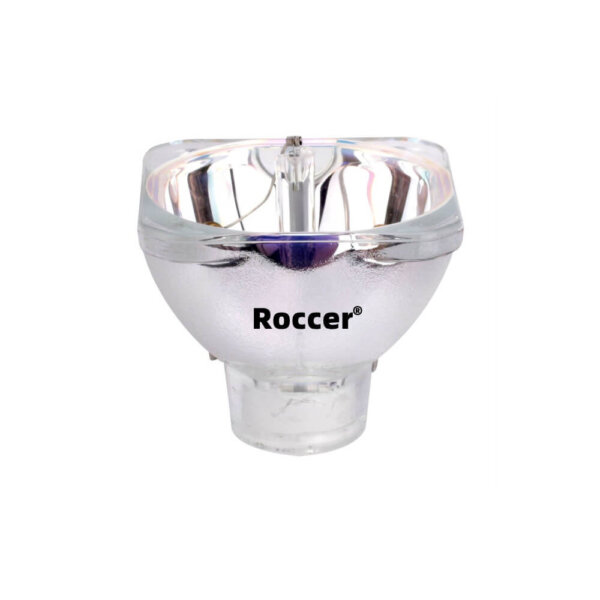

Set high temperature resistant materials, high reflection lamp cup, high color temperature, high brightness in one.Â
| Model No | Power (W) |
Arc Length (mm) |
Luminous Flux (lm) |
Color Temperature (K) |
Color Rendering Index (cri) |
Allowed Max Temperature (℃) |
Average life (hrs) |
Operating Ballast |
| RSD 120W R2 | 120 | 1.2 | 5150 | 8000 | 75 | 350 | 2000 | 132Dn/TOÂ 1 |
| RSD 150W R3 | 150 | 1.2 | 6000 | 8000 | 75 | 350 | 2000 | 150Dn/TO 2 |
| RSD 200W R5 | 200 | 1.2 | 7800 | 8000 | 75 | 350 | 2000 | 190Dn/TO 1 |
| RSD 230W R7 | 230 | 1.3 | 11000 | 7500 | 75 | 350 | 1500 | PTÂ VIPÂ 03Â MID |
| RSDÂ 260WÂ R10 | 260 | 1.3 | 12000 | 7500 | 75 | 350 | 1500 | PTÂ VIPÂ 03Â TOP |
| RSD 280W R12 | 280 | 1.3 | 12500 | 7500 | 75 | 350 | 1500 | PTÂ VIPÂ 03Â TOP |
| RSD 300W R15 | 300 | 1.3 | 13500 | 7500 | 75 | 350 | 1500 | 300c B/B01 |
| RSD 330W R16 | 330 | 1.3 | 16000 | 7500 | 75 | 350 | 1500 | 330c B/B01 |
| RSD 350W R17 | 350 | 1.3 | 18000 | 7500 | 75 | 350 | 1500 | 350c B/B01 |
 *Table data information is for reference only.
