Lighting Cables & Connectors

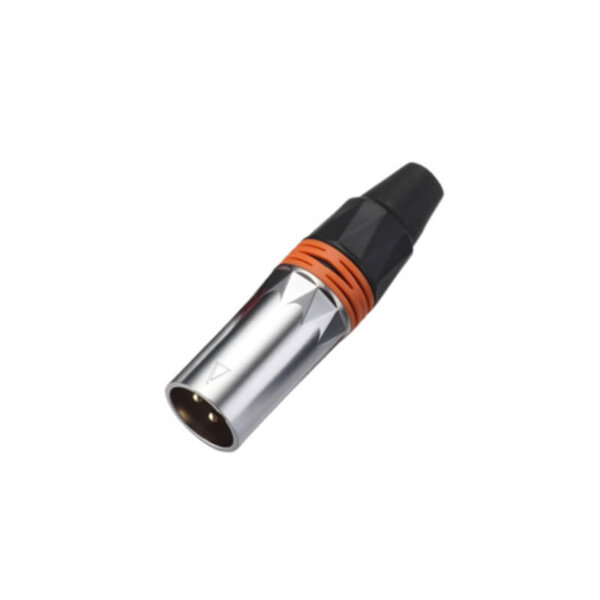

3-Pin XLR Cable Connector Male with Nickel Housing and Silver Contacts

Model: BO-LA1135-PG
Applicable diameter: 4 ~ 7mm
Housing: zinc alloy, chrome plating
Service life: 1000 times
Insertion force: ≤ 20N
Contact resistance: < 5mΩ
Insulation resistance: > 1000MΩ

Get A Quote
Please fill in your country or region so that a suitable business manager can contact you.
Quote / Inquiry / ask for assistance
Contact Us

A 3-pin XLR cable connector is a type of electrical connector that is commonly used for audio and DMX signaling. It has three pins: pin 1 is for ground, pin 2 is for positive signal, and pin 3 is for negative signal. The connector is typically made of nickel-plated metal and has a locking mechanism to prevent accidental disconnection.

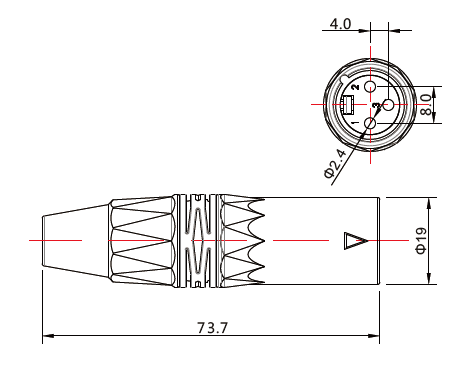

Size parameters

3-pin XLR cable connectors are used in a wide variety of applications, including:

  • Connecting microphones to mixers and other audio equipment
  • Connecting speakers to amplifiers
  • Connecting lighting and other stage effects to controllers
  • Connecting DMX controllers to lighting fixtures
