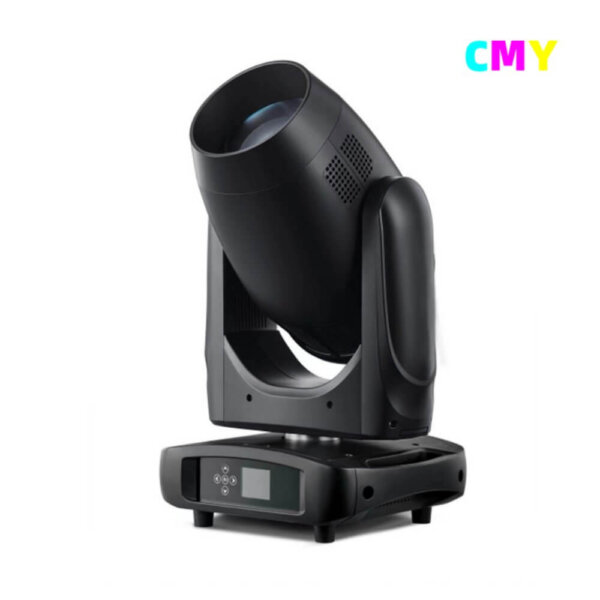

Product Short information
Wide range of color choices/Smooth color transitions/Highly efficient light output
Technical Specifications
Light Source:
Bulb Specification: Philips MSD Silver 380W/2 LL
Color temperature: 7800K
Rated life: 4000 hoursColors:
3color wheels 12colors+ OpenWhite (Including: CTO 3500K & UV)
Full CMY Color MixingGOBOs:
GOBO Wheel 1: 10Fixed + Open (1 Beam Reducers Beam Mode)
GOBO Wheel 2: 7Rotating/Replaceable + Open (Size: 15.9mm; Viewable: 11.5mm)
Modular design for easy servicing and GOBO replacementEffects:
Prism: 1 8 prism,1 16 prism can be quickly cut in, cut out. It can be rotated in two directions with variable speed Two prisms can be stacked
Atomization: 1 single-sided high-transmission atomized lens
focusing: DMX linear focus
Strobe:Independent dual-chip. 0-15 times/second ultra-high-speed strobe. 0-100% linear dimming
Dimming: Linear Dimming
Zoom Range: 2 ~ 45-degrees
Control:
Rotation angle: 540° in the horizontal direction, 270° in the vertical direction, with automatic return function
Control Channels: 21, 24 or 26
DMX Modes: 2, RDM (Remote Device Management)
Control: 3-pin
Full color display menu
Pan/Tilt Speed: Fast to Slow
Bulb Specification: Philips MSD Silver 380W/2 LL
Color temperature: 7800K
Rated life: 4000 hoursColors:
3color wheels 12colors+ OpenWhite (Including: CTO 3500K & UV)
Full CMY Color MixingGOBOs:
GOBO Wheel 1: 10Fixed + Open (1 Beam Reducers Beam Mode)
GOBO Wheel 2: 7Rotating/Replaceable + Open (Size: 15.9mm; Viewable: 11.5mm)
Modular design for easy servicing and GOBO replacementEffects:
Prism: 1 8 prism,1 16 prism can be quickly cut in, cut out. It can be rotated in two directions with variable speed Two prisms can be stacked
Atomization: 1 single-sided high-transmission atomized lens
focusing: DMX linear focus
Strobe:Independent dual-chip. 0-15 times/second ultra-high-speed strobe. 0-100% linear dimming
Dimming: Linear Dimming
Zoom Range: 2 ~ 45-degrees
Control:
Rotation angle: 540° in the horizontal direction, 270° in the vertical direction, with automatic return function
Control Channels: 21, 24 or 26
DMX Modes: 2, RDM (Remote Device Management)
Control: 3-pin
Full color display menu
Pan/Tilt Speed: Fast to Slow
Electrical:
Input voltage: 110V~240V AC, 50/60Hz(Auto Sensing)
Daisy chain max: 3 fixtures (@120V); 5 fixtures (@230V)
Power Draw: 500W (4.71A @ 120V; 2.26A @ 220V)
cooling system:
Equipped with 9 cooling fans. After the bubble is eliminated for one minute, the fan will enter the silent cooling mode
Other functions:
Display lamp, bulb usage time. Remote control bulb switch function,Fault detection reminder, manual lock screen.
Shell and protection grade:
Aluminum, high temperature/UV resistant engineering plastic, protection grade IP20
Dimensions/Weight:
Dimensions (LxWxH): 14.8” x 11.6” x 23.5” / 382 x 299 x 603mm
Weight: 45 lbs. / 20.5 kg.
Accessories
Power Cable *1, DMX Cable *1, Quick Lock *1, Manual *1, Safety Cable *1
