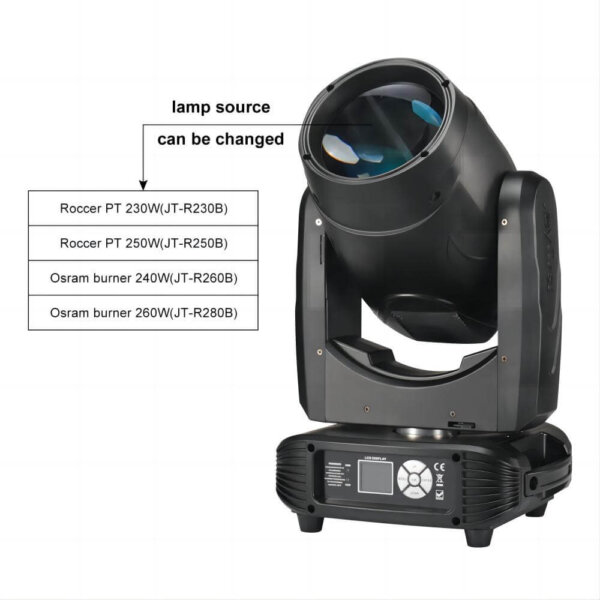

Lamp: 230W/250W/260W/280W
| Joyfirst 7R Plus | Roccer Platinum 230W (Roccer) |
| Joyfirst 9R | Roccer Platinum 250W (Roccer) |
| Joyfirst 10R | Osram Burner 240W (Roccer) |
| Joyfirst 12R | Osram Burner 260W (Roccer) |
Channel mode: 18 DMX512 Channel
Pan scan: 540°(16bit) Electric correction
Tilt scan: 270° (16bit) Electric correction
Amazing dot matrix, four tact switch, 180° turning show

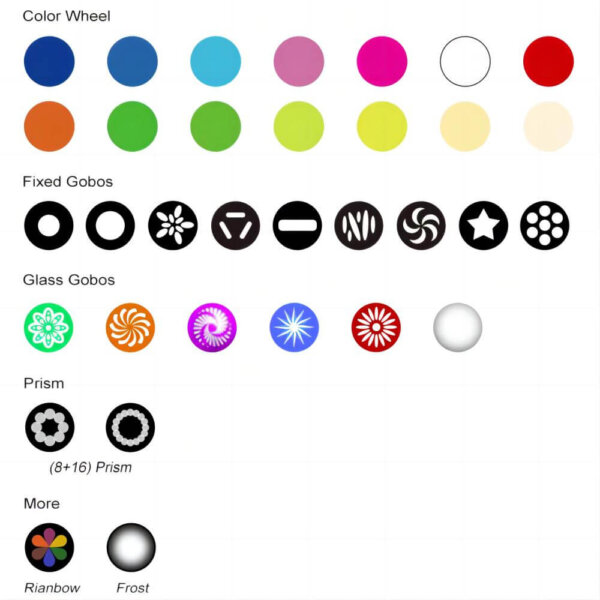

Color wheel: 14colors + white, and seven color effect;
Gobo wheel: 14 gobos(8 fixed gobos + 5 glass gobos + white);
Effect Wheel: 8 prism/8+16prism;
0-100% mechanical dimming, mechanical dimming and free dimming available.
Strobe macro control available;
Pan scan: 540°(16bit) Electric correction
Tilt scan: 270° (16bit) Electric correction
Amazing dot matrix, four tact switch, 180° turning show
Color wheel: 14colors + white, and seven color effect;
Gobo wheel: 14 gobos(8 fixed gobos + 5 glass gobos + white);
Effect Wheel: 8 prism/8+16prism;
0-100% mechanical dimming, mechanical dimming and free dimming available.
Strobe macro control available;
Lens optical system alchemical force , beam angle 0~4°;
Over-heat protection 3
Power Input: 100-240V, 50/60Hz
Power Dissipation: 400W
IP level :IP20
Magnetic ballast and AC/Dc power supply
Product Size: 310*230*500mm
Packing Size: 635*440*725
Net weight: 14.5KG
Appearance parameter diagram
Parameter details
