Led Wash Lights

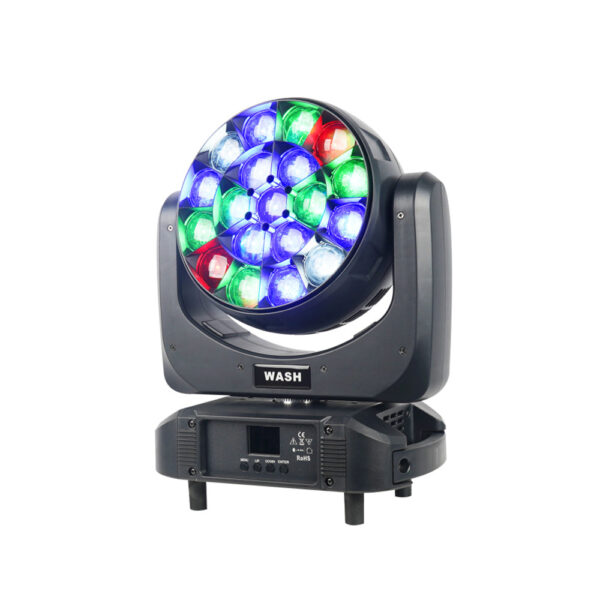

LED 19*20W RGBW Beam/Wash/Zoom 4in1 Moving Head With Bee Eye

LED Wash Zoom Lights with Bee Eye Effect

  • Beam Angle: 5.8°- 55°
  • DMX Channel: 21/23/35/78/92/97/99 Channels
  • Control Modes: DMX512/mater-Slave/Auto Run/Music
  • Light Sources: 19*20W 4IN1 RGBW LED
Get A Quote
Please fill in your country or region so that a suitable business manager can contact you.
Quote / Inquiry / ask for assistance
Contact Us
Product Short information
LED 19*20W Wash Zoom Beam Moving Head Lights with Bee Eye Effect. LED single control, can display arrows, numbers, letters and gobos
Technical Specifications
Light Source
19*20W 4IN1 RGBW LED
Beam Angle:5.8°- 55°
Power Consumption: 350w
Power Voltage: AC 100-240V, 50/60Hz
Control
DMX Channel:21/23/35/78/92/97/99 Channels
Control Modes: DMX512/mater-Slave/Auto Run/MusicPan/Tilt
Pan: 540°/ 360°, Tilt: 270°
Pan/Tilt Resolution: 8/16 bit
Construction
Display:180° reversible 1.8 inch TFT colorful Display

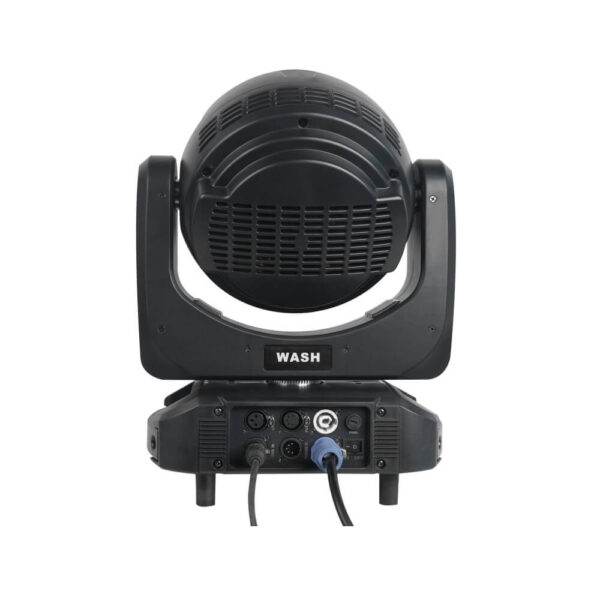

Data In/Out socket: 3-pin & 5-pin XLR sockets
Power Socket: Power Con in/out
Protection Rating: IP20
Features
LED single control, can display arrows, numbers, letters and patterns
High-efficiency optical system, wonderful flower effect plus zoom
Fan work speed auto adjustable with head temperature
Led temperature protection & Fan run speed automatic based on the head temperature.Dimension: 338*254*375mm
Net Weight: 8.5Kgs
Carton package 1in1 size: 42*34*46cm
Carton package 1in2 size: 69*44*48cm
Aging Test
Light Effect
Accessories
Power Cable *1, DMX Cable *1, Quick Lock *1, Manual *1, Safety Cable *1
Exhibition
Lighting Factory

Manual

Item Download
User Manual JT-D1920F

Library

Item Download
R20 21CH Joyfirst_1920B-21CH
R20 23CH Joyfirst_1920B-23CH
R20 35CH Joyfirst_1920B-35CH
d4 97CH Joyfirst_1920B
d4 104CH Joyfirst_led1920B
MA xml 21CH JTL@1920b-21ch@mode_1_21ch
MA xml 23CH JTL@1920b-23ch@mode_2_23ch
MA xml 35CH JTL@1920b-35ch@mode_3_35ch
MA xml 78CH JTL@1920b-78ch@mode_4_78ch
MA xml 92CH JTL@1920b-92ch@mode_5_92ch
MA xml 97CH JTL@1920b-97ch@mode_6_97ch
MA xml 99CH JTL@1920b-99ch@mode_7_99ch
