Product Short information

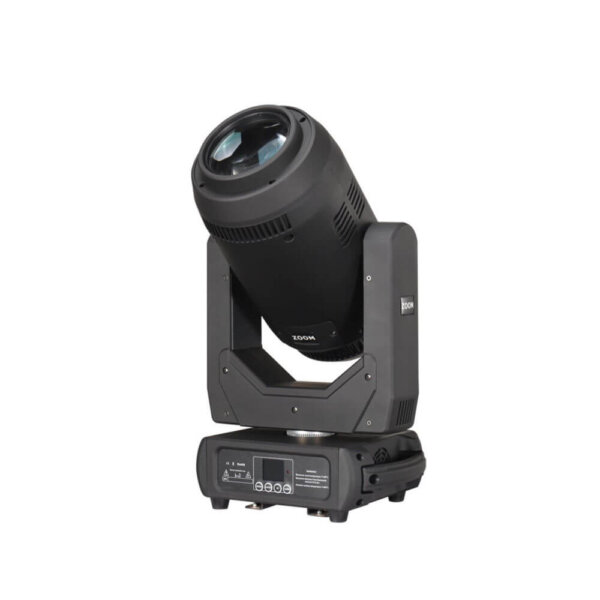

350W LED 3in1 Moving Head Light use a high-brightness LED lamp bead as the main light source. The vertical and horizontal movement speed can be adjusted, and it adopts powerful silent fan and overheating protection function. And a modular structure for easy maintenance.
Technical Specifications
· 350W High Output White LED
· 50,000 hours lifespan and low power consumption
· Zoom angle 8°~35°, focus function
· High light output,25000LUX@5M at White light zoom in,
· 1500LUX@5M at White light zoom out
· Temperature protect function, when the internal Temperature is up to 40° then the
fans begin to work, when the internal temperature is up to 70°and the brightness
reduce half.
· Color Wheel: 7 colors +white, color fine tuning, rotation with variable direction and
speed,with rainbow effect.
· 1 Rotation Gobo Wheel: 7 gobos + white, wheel rotation and shake,The gobo plate
19
is Removable, it is more convenient to change the gobo
· 1 Static Gobo Wheel: 8 gobos + white, wheel rotation and shake
· Prism: 8-facet Prism, bi-directional rotatable at variable speeds
· Frost effect
· High speed strobe effect with 0.3-25 flashers per second
· Internal program available
· 16/18 DMX Channels USITT DMX-512
· DMX 512, master-slave and sound activated controllable or auto operation
· Colorful LCD display
· Efficient low noise fan cooling system
· PowerCon IN/OUT
· 3-pin & 5-pin XLR connectors IN/OUT
· Two 1/4 turn fastening Omega Clamps
· IP 20 protection rating
· 50,000 hours lifespan and low power consumption
· Zoom angle 8°~35°, focus function
· High light output,25000LUX@5M at White light zoom in,
· 1500LUX@5M at White light zoom out
· Temperature protect function, when the internal Temperature is up to 40° then the
fans begin to work, when the internal temperature is up to 70°and the brightness
reduce half.
· Color Wheel: 7 colors +white, color fine tuning, rotation with variable direction and
speed,with rainbow effect.
· 1 Rotation Gobo Wheel: 7 gobos + white, wheel rotation and shake,The gobo plate
19
is Removable, it is more convenient to change the gobo
· 1 Static Gobo Wheel: 8 gobos + white, wheel rotation and shake
· Prism: 8-facet Prism, bi-directional rotatable at variable speeds
· Frost effect
· High speed strobe effect with 0.3-25 flashers per second
· Internal program available
· 16/18 DMX Channels USITT DMX-512
· DMX 512, master-slave and sound activated controllable or auto operation
· Colorful LCD display
· Efficient low noise fan cooling system
· PowerCon IN/OUT
· 3-pin & 5-pin XLR connectors IN/OUT
· Two 1/4 turn fastening Omega Clamps
· IP 20 protection rating
Photometric DATA
Appearance Parameters
Accessories
Power Cable *1,DMX Cable *1, Quick Lock *1, Manual *1, Safety Cable *1
