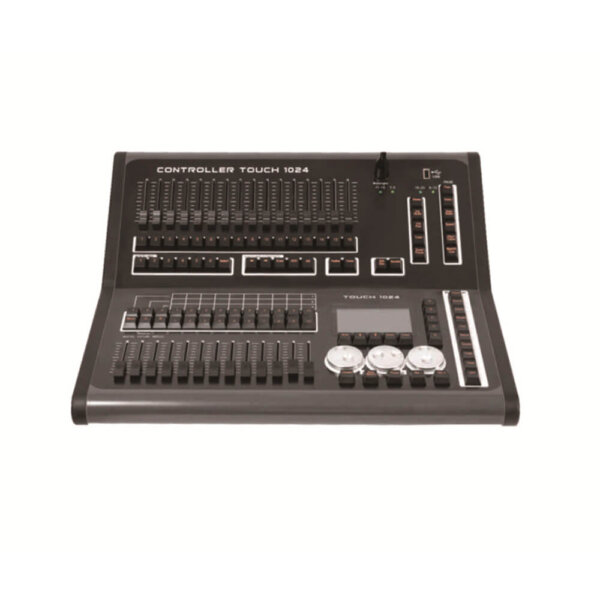

Joyfirst DMX Console R3 Controller Touch 1024

New Product Recommendation

DMX512 channels: 1024
Matching quantity of computer lights: 96
Lamp library: support pearl R20 lamp library
MIDI music synchronization: support
Create/edit light library: support

Get A Quote
Please fill in your country or region so that a suitable business manager can contact you.
Quote / Inquiry / ask for assistance
Contact Us




• DMX512 channels: 1024
• Matching quantity of computer lights: 96
• Computer light rematching address code: supported
• Horizontal and vertical switching of lamps: support
• Capacitive touch screen 4.3 “
• Lamp channel reverse output: support
• Sliding mode switch of lamp channel: support
• Maximum control channels available for each computer lamp: 40 main channels+40 fine tuning channels
• Lamp library: support pearl R20 lamp library • Number of scenes that can be saved: 60
• Number of scenarios that can run simultaneously: 10
• Total number of steps in a multistep scenario: 600
• Time control of scene: fade in, fade out, LTP slide
• Number of graphics stored per scene: 5
• Push rod start scene and dimming: support
• Interlock scenario: support point control scenario: support
Graphic generator: can generate Dimmer, P/T, RGB, CMY, Color, Gobo, Iris, Focus graphics
• Number of graphs that can be run simultaneously: 5
• Main control push rod: global, replay, lamps

• Immediate blackout: support
• Rotary table adjustment channel value: support
• Push rod adjustment channel value: support
• Push rod dimming: support
• U disk reading: supports FAT32 format
• MIDI music synchronization: support
• Create/edit light library: support
• Program backup and recovery: support
• Net weight: 9.5kg
• Weight with air case: 22kg
• Air cargo box package size: 60×55.5x30cm
• Carton packing weight: 13kg


Please fill in your country or region so that a suitable business manager can contact you.
Quote / Inquiry / ask for assistance

Parameter Manual

Item Download
Manual R3 Technical Parameter
