Product Short information

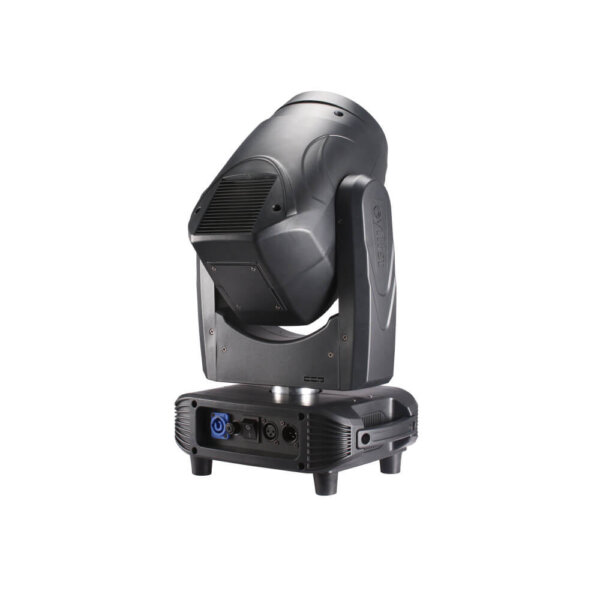

Mini 7R is a lamp launched by our company according to market demand, which is smaller than Beam 7R, but has similar functions to Beam 7R, and its brightness is not inferior to Beam 7R. It had its first public presentation in April 2023 at Prolight+Sound in Frankfurt, Germany.
Technical Specifications
Lamp: Roccer 230W R7(Optional)
Channel mode:16 DMX512 Channel
Pan scan: 540°(16bit) Electric correction
Tilt scan: 270° (16bit) Electric correction
Amazing dot matrix, four tact switch, 180° turning show
Color Wheel: 13colors+white
Gobo Wheel: 13 gobos+white(3 glass gobos)
Effect Wheel: 8 prism/8 prism+16prism(Optional);
0- 100% mechanical dimming, mechanical dimming and free dimming available.
Strobe macro control available;
Lens optical system chemical force , beam angle 0~4°;
Over-heatprotection
Power Input: 100-240V, 50/60Hz
Power Dissipation: 250W
IP level: IP20
Magnetic ballast and AC/Dc power supply

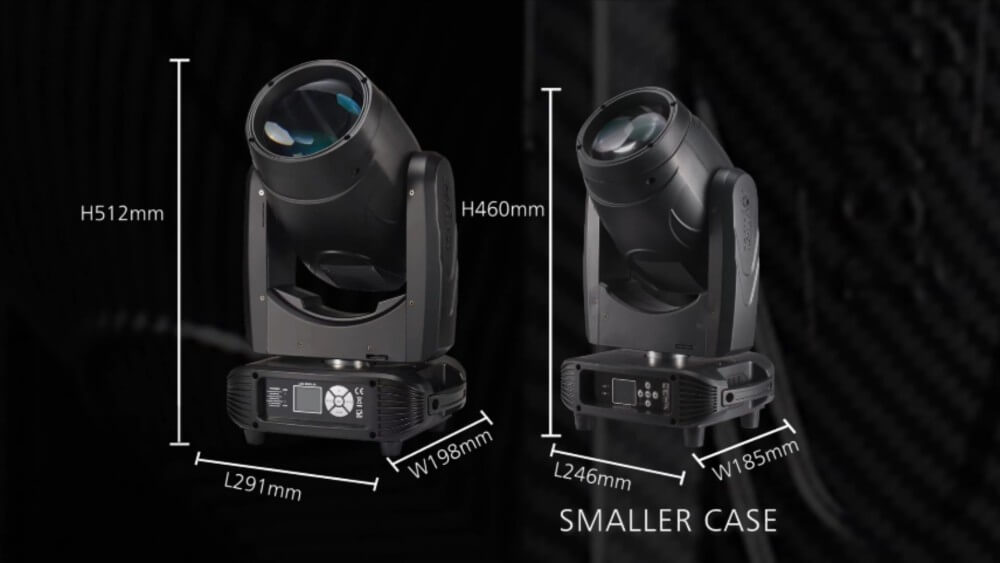

Product Size: 246x185x460mm
Net weight: 8.5KG
Channel mode:16 DMX512 Channel
Pan scan: 540°(16bit) Electric correction
Tilt scan: 270° (16bit) Electric correction
Amazing dot matrix, four tact switch, 180° turning show
Color Wheel: 13colors+white
Gobo Wheel: 13 gobos+white(3 glass gobos)
Effect Wheel: 8 prism/8 prism+16prism(Optional);
0- 100% mechanical dimming, mechanical dimming and free dimming available.
Strobe macro control available;
Lens optical system chemical force , beam angle 0~4°;
Over-heatprotection
Power Input: 100-240V, 50/60Hz
Power Dissipation: 250W
IP level: IP20
Magnetic ballast and AC/Dc power supply
Product Size: 246x185x460mm
Net weight: 8.5KG
