Led Wash Lights

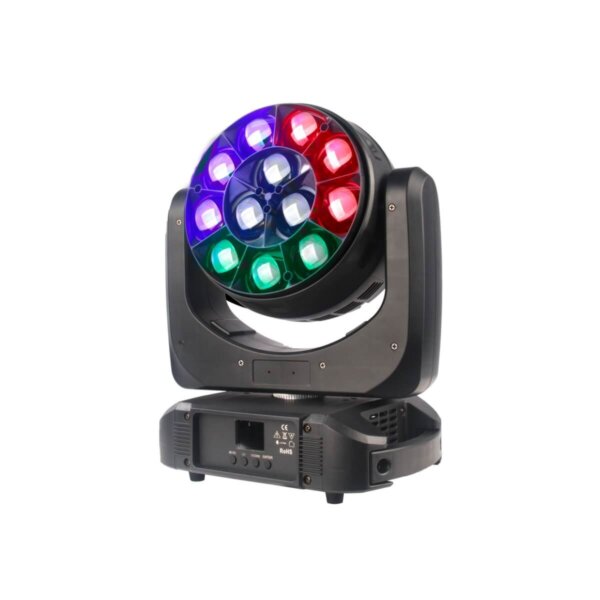

LED 12*40W RGBW Beam/Wash/Zoom 4in1 Bee Eye Moving Head

  • Model: JT-D1240F
  • Light Sources: 12*40W 4in1 RGBW LED
  • Power Consumption: 400W
  • DMX Channel: 21/25/33/81 Channel
  • Control Modes: DMX512/mater-Slave/Auto Run/Music
  • Display: 1.8″  TFT Color Display
Get A Quote
Please fill in your country or region so that a suitable business manager can contact you.
Quote / Inquiry / ask for assistance
Contact Us
Product Short information
LED wash lights with excellent dynamic performance
Technical Specifications
Light Sources: 12 x 40W 4in1 RGBW LED
Beam Angle: 3.5°~ 45°
Power Consumption: 380W
Power Voltage: AC 100-240V, 50/60Hz
Dimension: 324x240x377mm
Net Weight: 9Kgs
Packing size: 400x310x430mm
DMX Channel: 16/21 Channel
Control Modes: DMX512/mater-Slave/Auto Run/Music
Pan/Tilt: 540°or 360°in optional / 270°
Pan/Tilt Resolution: 8/16 bit
Display:1.8 TFT colorful Display
Data In/Out socket: 3-pin & 5-pin XLR sockets
Power Socket: PowerCon in/out
Protection Rating: IP20
Motorized liner zoom system, zoom range: 3.5°~45°
Outstanding color macro effect
Dimmer: 0~100% smooth dimming
Variable strobe effects
Fast, quiet operation and flicker free
Light Effect
Power Cable *1, DMX Cable *1, Quick Lock *1, Manual *1, Safety Cable *1
Lighting Factory


Item Download
User Manual manual of JT-D1240F


Item Download
R20 21CH 1240B-21CH
R20 25CH 1240B-25CH
R20 33CH 1240B-33CH
d4 25CH BO_1240B-25CH
d4 BO_1240B
MA xml 21CH bo_light@bo-1240b@mode_1__21ch
MA xml 25CH bo_light@bo-1240b@mode_2__25ch
MA xml 33CH bo_light@bo-1240b@mode_3__33ch
MA xml 81CH bo_light@bo-1240b@mode_4__81ch
