Led Moving Head

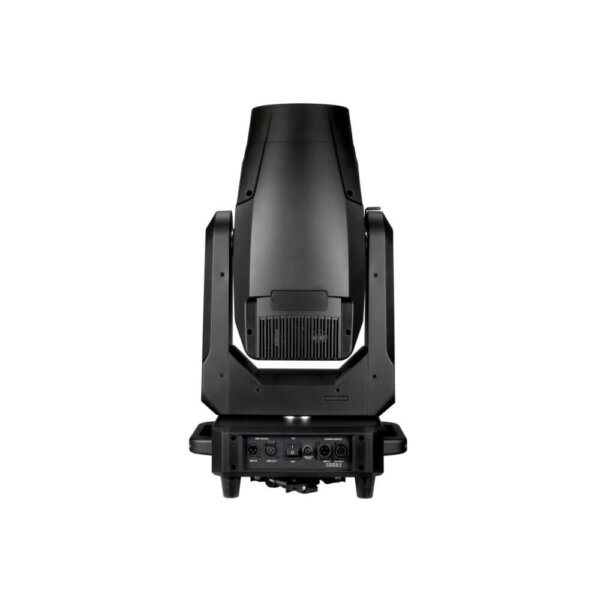

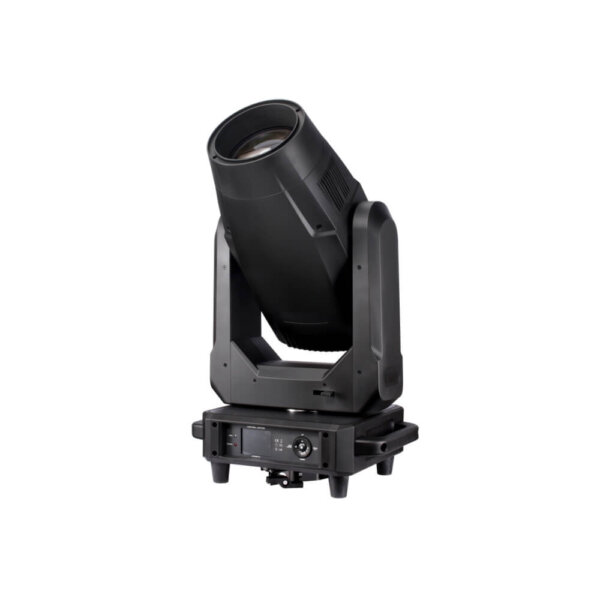

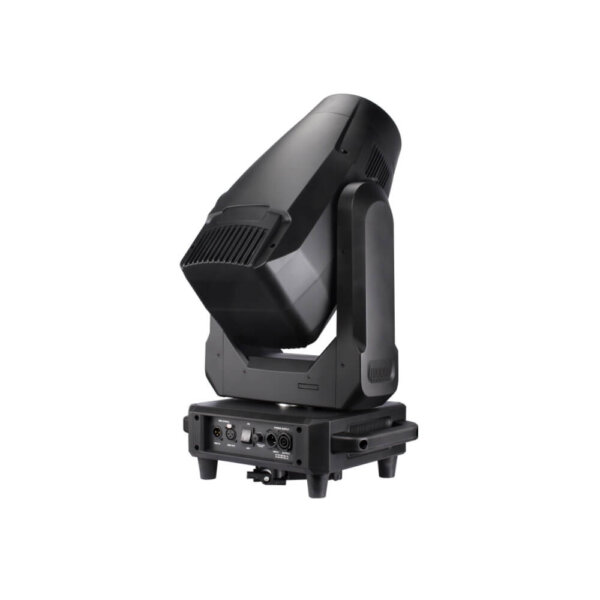

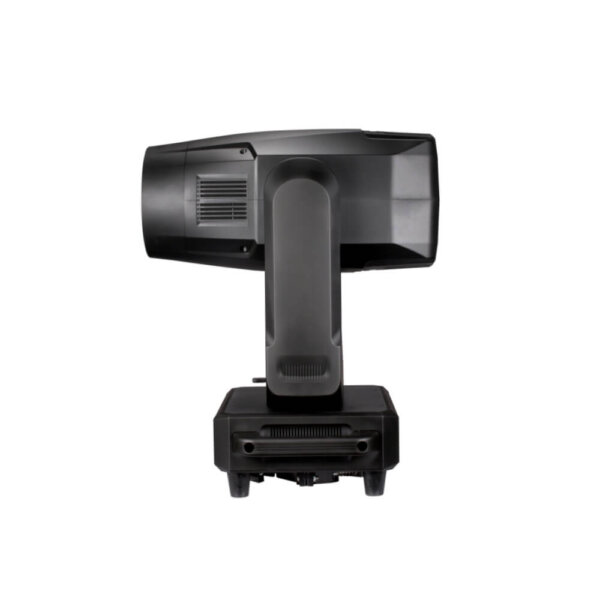

LED 600W Beam Spot Wash Moving Head Light with CMY CTO

LAMP: 550W White LED Engine
AC power: 100-240V AC, 50/60 Hz
Color Wheel: 8 colors + white, CMY+CTO
Prism: 4 Prism

Get A Quote
Please fill in your country or region so that a suitable business manager can contact you.
Quote / Inquiry / ask for assistance
Contact Us
Product Short information
LED 600W Beam Moving Head Lights, Suitable for concerts, musicals, dramas, gymnasiums, etc.
Appearance Parameters
Illuminance Measurement
Chromatographic Measurement
Technical Specifications
Power
AC power: 100-240VAC,50/60Hz
Rated power: 650W@220V
Optics
Lamp: 500W LED
Rated life: 20000h
LUX: 5m 168000lm
Beam angle: 3°~45°
Effects
Horizontal: 540°
Vertical: 270°
Shutter:0~30HZ
Dimming: 0-100% coarse and fine control
color: 8 colors+open,half color, function, CMY+CTO
Fixed Gobo: 12 fixed gobos+open
Rotation Gobo:7 glass gobos,each glass gobo can be independent positive and negative rotation
Prism system
4 facet prism and 8 facet prism,
each prism can be independent positive and negative direction
Focus: DMX linear adjustment
Macro function: console reset function,self-walk mode, master-slave mode
Control
control and Programming: DMX512,With RDM function,software can be upgraded online,dial the address code
DMXchannels: 22CH/26CH
Physical characteristics
Protection rating: IP20
Housing: high temperature resistant flame retardant plastic
DMX data in/out: 3-pin lockingXLR
Weight: 23.5kg
Ambient temperature: -20C~40°C(-4F~104°F)
Light size:383x274x668mm
Package size:750x360x470mm

Color Wheel
Gobo Wheel
Accessories
Power Cable *1,DMX Cable *1, Quick Lock *1, Manual *1, Safety Cable *1
Exhibition
Lighting Factory

Manual

Item Download
Manual Led Beam 550W
